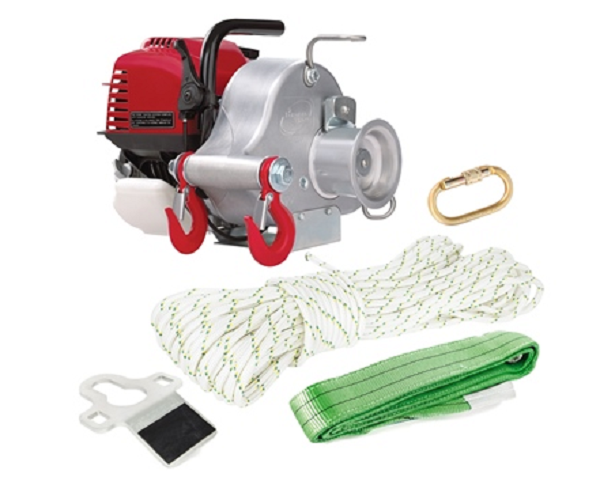

Kawasaki Mule / Teryx Power of 1550lbs Gas-Powered Portable Capstan Winch Kit by Kimpex

SKU: 078294-EKO
$1,317.00

In Stock
FREE SHIPPING!
EARN $52.68 GearBuck$ logo
Material: Zinc plated with anodized aluminum screw gate lock Swivel gate with 17 mm (0.67'') opening
SKU: 078294-EKO
BRAND: Kimpex

The gas-powered portable capstan winch offers 700 kg (1550 lbs) of power. It is the ideal winch for hunters, boaters, snowmobilers or quad riders and other applications requiring a winch more compact and portable.

Powered by the reliable Kawasaki Mule / Teryx full 360o ‘’any-side-up’’ 4-stroke engine (GX-35)! Thanks to the capstan principle, there is no limit to the rope length. You’ll be able to pull what you want, where you want. Also, unlike conventional winches, it offers a constant pulling power. The rope is tied to the load and the other end is wrapped 3 or 4 turns on the capstan drum. When the engine is running, the capstan drum is automatically turning. You simply have to pull on the rope to apply friction on the drum to pull the load.

Hitch Plate Winch Anchor:

  • Fits towing balls up to 50 mm (2'') diameter.
  • The hitch plate turns any vehicle into a pulling anchor for the 078001 winch. Simply hook the winch to the plate using the safety hooks and slide the key-hole shape over your ball hitch and you're ready to pull.

Oval locking carabiner steel:

Use this locking carabiner to attach swing side snatch blocks, slings or rope end accessories.

  • Material: Zinc plated with anodized aluminum screw gate lock.
  • Swivel gate with 17 mm (0.67'') opening
  • Minimum break strength: 25 KN (5500 lb)

Double Braided Polyester Winch Rope (50 meters):

  • With a minimum breakpoint of 2200 kg (4850 lb) for the 10 mm (3/8'') and 3300 kg (7275 lb) for the 12 mm (1/2''), this rope is available in different lengths.
  • It features double braid construction for durability and low-stretch properties for safety.
  • Its low cost and abrasion resistance make it a good choice for use with the 1550lbs Portable Winch where it is subject to friction and heat.
  • Stretch: Only 12% at break point.
  • Gas-Powered Portable Capstan Winch Kit Feature:

    • Winch Type: Fuel
    • Material: Steel
    • Strength: 1550 lbs

Product Fitment

Kawasaki Teryx KRX 1000 2021 Kawasaki Teryx KRX 1000 2020 Kawasaki Teryx KRX 1000
Kawasaki Teryx 2022 Kawasaki Teryx 2022 Kawasaki Teryx4 2021 Kawasaki Teryx 2021 Kawasaki Teryx4 2020 Kawasaki Teryx 2020 Kawasaki Teryx4 2019 Kawasaki Teryx 2019 Kawasaki Teryx4 2018 Kawasaki Teryx 2018 Kawasaki Teryx4 2017 Kawasaki Teryx 2017 Kawasaki Teryx4 2016 Kawasaki Teryx 2016 Kawasaki Teryx4 2015 Kawasaki Teryx 2015 Kawasaki Teryx4 2014 Kawasaki Teryx 2014 Kawasaki Teryx4 2013 Kawasaki Teryx 2013 Kawasaki Teryx4 2012 Kawasaki Teryx 2012 Kawasaki Teryx4 2011 Kawasaki Teryx 2010 Kawasaki Teryx
Kawasaki Mule 2022 Kawasaki Mule Pro-FX 2022 Kawasaki Mule Pro-FXR 2022 Kawasaki Mule Pro-FXT 2022 Kawasaki Mule Pro-MX 2021 Kawasaki Mule Pro-MX 2021 Kawasaki Mule Pro-FXR 2021 Kawasaki Mule Pro-DXT 2021 Kawasaki Mule Pro-DX 2021 Kawasaki Mule Pro-FXT 2021 Kawasaki Mule Pro-FX 2021 Kawasaki Mule 4010 Trans 2021 Kawasaki Mule 4000/4010 2021 Kawasaki Mule SX 2020 Kawasaki Mule Pro-MX 2020 Kawasaki Mule Pro-FXR 2020 Kawasaki Mule Pro-DXT 2020 Kawasaki Mule Pro-DX 2020 Kawasaki Mule Pro-FXT 2020 Kawasaki Mule Pro-FX 2020 Kawasaki Mule 4010 Trans 2020 Kawasaki Mule 4000/4010 2020 Kawasaki Mule SX 2019 Kawasaki Mule Pro-MX 2019 Kawasaki Mule Pro-FXR 2019 Kawasaki Mule Pro-DXT 2019 Kawasaki Mule Pro-DX 2019 Kawasaki Mule Pro-FXT 2019 Kawasaki Mule FX 2019 Kawasaki Mule 4010 Trans 2019 Kawasaki Mule 4000/4010 2019 Kawasaki Mule SX 2018 Kawasaki Mule Pro-DXT 2018 Kawasaki Mule Pro-DX 2018 Kawasaki Mule Pro-FXT 2018 Kawasaki Mule Pro-FX 2018 Kawasaki Mule 4010 Trans 2018 Kawasaki Mule 4000/4010 2018 Kawasaki Mule SX 2017 Kawasaki Mule Pro-DXT 2017 Kawasaki Mule Pro-DX 2017 Kawasaki Mule Pro-FXT 2017 Kawasaki Mule Pro-FX 2017 Kawasaki Mule 4010 Trans 2017 Kawasaki Mule 4000/4010 2016 Kawasaki Mule Pro-FXT 2016 Kawasaki Mule Pro-FX 2016 Kawasaki Mule 4010 Trans 2016 Kawasaki Mule 4000/4010 2015 Kawasaki Mule Pro-FXT 2015 Kawasaki Mule 4010 Trans 2015 Kawasaki Mule 4000/4010 2015 Kawasaki Mule 600/610 2014 Kawasaki Mule 600/610 2014 Kawasaki Mule 4000/4010 2014 Kawasaki Mule 4010 Trans 2013 Kawasaki Mule 600/610 2013 Kawasaki Mule 4000/4010 2013 Kawasaki Mule 4010 Trans 2012 Kawasaki Mule 600/610 2012 Kawasaki Mule 4000/4010 2012 Kawasaki Mule 4010 Trans 2011 Kawasaki Mule 600/610 2011 Kawasaki Mule 4000/4010 2011 Kawasaki Mule 4010 Trans 2010 Kawasaki Mule 600/610 2010 Kawasaki Mule 4000/4010 2010 Kawasaki Mule 4010 Trans
